Temperature Trigger

This little project uses a voltage comparator to trigger a relay on and off. I have designed it to work with my PCB Fuser project. It uses a thermistor salvaged with the fuser unit. The trigger point is adjustable through R1. This means that I can have the unit keep a more or less constant temperature on the fuser drum.

Schematic Diagram

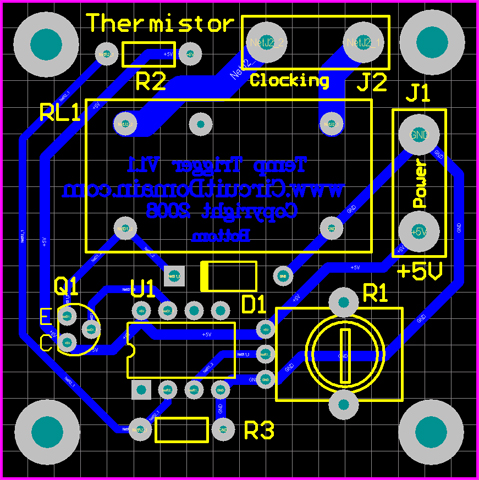

Circuit Board
